PH140 - LOW SMOKE HI - TEMP BRAKE HOSE

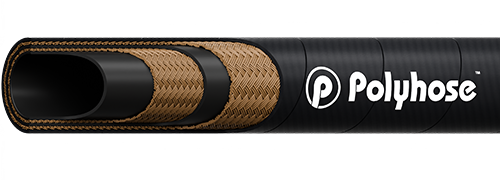

product img

Construction

Inner tube

Black colour, AEM rubber with low smoke property

Reinforcement

Double textile braids

Cover

Black colour, AEM rubber with low smoke property

Application

Very low pressure hydraulic lines 15 bar for use with Hydrocarbon lubricants, hydraulic fluids and wide range temperature resistance

Item Code	Dash Size	DN	ID		OD		WP		BP		BR/r		W
Item Code	Dash Size	DN	inch	mm	inch	mm	psi	bar	psi	bar	inch	mm	kg/m
PH140-04	-04	06	1/4	6.4	0.61	15.6	220	15	870	60	2.36	60	0.255
PH140-05	-05	08	5/16	8.0	0.69	17.4	220	15	870	60	3.15	80	0.314
PH140-06	-06	10	3/8	9.5	0.74	18.8	220	15	870	60	3.94	100	0.340
PH140-08	-08	12	1/2	12.7	0.87	22.0	220	15	870	60	5.12	130	0.420
PH140-12	-12	19	3/4	19.1	1.13	28.8	220	15	870	60	7.48	190	0.590
PH140-16	-16	25	1	25.6	1.50	38.1	220	15	870	60	10.04	255	1.020
PH140-20	-20	31	1.1/4	31.7	1.87	47.5	220	15	870	60	13.78	350	1.500

Temperature Range : Continuous: -38°C to +150°C
