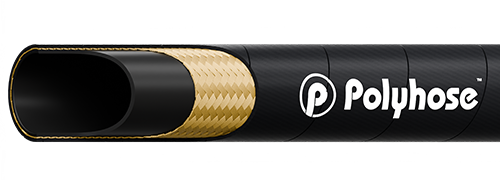

PH 461 HEAVY DUTY AIR DRILL HOSE
Construction
Inner tube
Black colour, synthetic rubber resistant to oil & air.
Reinforcement
Single steel wire braid
Cover
Black colour, synthetic rubber resistant to weather, abrasion & ozone.
Application
Compressed air service in Heavy duty, high pressure use on industrial, construction & pneumatic Mining applications. Colour option Blue available on request.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH 461-24 | -24 | 38 | 1.1/2 | 38.7 | 2.05 | 52 | 1020 | 70 | 3045 | 210 | 19.7 | 500 | 1.706 |
Temperature Range : Continuous: -40°C to +90°C
