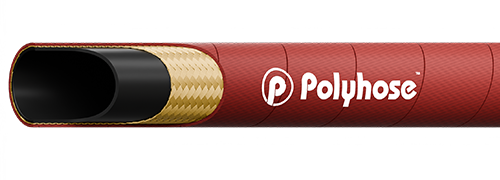

PH471 - STEAM 1 W/B
Applicable Standard : IS 10655 Type 2/ISO 6134 Type 1A/BS 5342 Type 1A
Construction
Inner tube
Black colour, EPDM rubber resistant to high temperature steam
Reinforcement
Single steel wire Braid
Cover
Red Colour, EPDM rubber resistant to abrasion, heat and weather
Application
High temperature steam Lines at constant pressure of 145 psi
| Note : Black Colour Cover also available |
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH471-06 | -06 | 10 | 3/8 | 10.0 | 0.69 | 17.5 | 145 | 10 | 1450 | 100 | 5.1 | 130 | 0.399 |
| PH471-08 | -08 | 12 | 1/2 | 12.5 | 0.87 | 22.0 | 145 | 10 | 1450 | 100 | 5.9 | 150 | 0.496 |
| PH471-12 | -12 | 19 | 3/4 | 19.0 | 1.14 | 29.0 | 145 | 10 | 1450 | 100 | 9.1 | 230 | 0.727 |
| PH471-16 | -16 | 25 | 1 | 25.4 | 1.37 | 34.8 | 145 | 10 | 1450 | 100 | 11.8 | 300 | 0.800 |
| PH471-20 | -20 | 32 | 1.1/4 | 31.5 | 1.65 | 42.0 | 145 | 10 | 1450 | 100 | 14.8 | 375 | 1.281 |
Temperature Range : Continuous: Up to +185°C Steam
