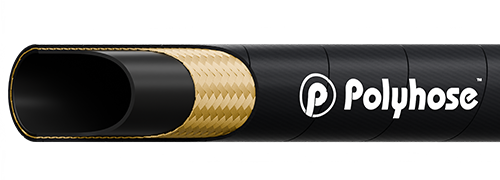

PH534 - LPG HOSE AS PER EN 1762 : TYPE - D
Applicable Standard : EN 1762 - Type D
Construction
Inner tube
Low Permeation Synthetic rubber tube resistant to n-pentane
Reinforcement
Single wire braid
Cover
Perforated black colour, Synthetic rubber resistant to abrasion and weather. Available in Wrap and Smooth finish*
Application
Designed for transfer of LPG in liquid or gaseous phase and natural gas
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH534-06 | -06 | 10 | 3/8 | 9.7 | 0.74 | 18.8 | 365 | 25 | 1450 | 100 | 3.5 | 90 | 0.351 |
| PH534-08 | -08 | 12 | 1/2 | 12.7 | 0.89 | 22.7 | 365 | 25 | 1450 | 100 | 3.9 | 100 | 0.474 |
| PH534-10 | -10 | 16 | 5/8 | 15.9 | 1.02 | 25.9 | 365 | 25 | 1450 | 100 | 4.9 | 125 | 0.566 |
| PH534-12 | -12 | 19 | 3/4 | 19.0 | 1.22 | 31.0 | 365 | 25 | 1450 | 100 | 6.3 | 160 | 0.793 |
| PH534-16 | -16 | 25 | 1 | 25.0 | 1.50 | 38.0 | 365 | 25 | 1450 | 100 | 7.9 | 200 | 1.103 |
| PH534-20 | -20 | 31 | 1.1/4 | 32.0 | 1.77 | 45.0 | 365 | 25 | 1450 | 100 | 9.8 | 250 | 1.414 |
| PH534-24 | -24 | 38 | 1.1/2 | 38.0 | 2.05 | 52.0 | 365 | 25 | 1450 | 100 | 12.6 | 320 | 1.963 |
| PH534-32 | -32 | 51 | 2 | 51.0 | 2.60 | 66.0 | 365 | 25 | 1450 | 100 | 15.7 | 400 | 2.643 |
| PH534-48 | -48 | 76 | 3 | 76.0 | 3.70 | 94.0 | 365 | 25 | 1450 | 100 | 25.6 | 650 | 4.275 |
Temperature Range : Continuous: -30°C to +70°C
*Smooth cover available only upto size 1"
