PH626 - DRY CEMENT DELIVERY / SILO HOSE

product img

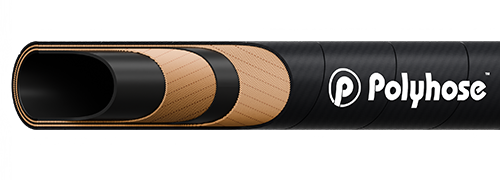

Construction

Inner tube

Black colour, Synthetic and natural rubber blend resistant to abrasion

Reinforcement

Plies of synthetic textile cords with two cross anti static copper wires

Cover

Black colour, Synthetic rubber resistant to ozone, weather and abrasion

Application

For transfer of Dry Cement, Sand, Crusher Dust from Silo/ Tanker

Item Code	Dash Size	ID		OD		WP		BP		W
Item Code	Dash Size	inch	mm	inch	mm	psi	bar	psi	bar	kg/m
PH626-16	-16	1	25.0	1.46	37.0	150	10	450	30	0.83
PH626-20	-20	1.1/4	32.0	1.73	44.0	150	10	450	30	1.01
PH626-24	-24	1.1/2	38.0	1.97	50.0	150	10	450	30	1.30
PH626-32	-32	2	51.0	2.56	65.0	150	10	450	30	1.70
PH626-40	-40	2.1/2	64.0	3.07	78.0	150	10	450	30	2.10
PH626-48	-48	3	76.0	3.54	90.0	150	10	450	30	2.70
PH626-64	-64	4	102.0	4.65	118.0	150	10	450	30	4.40
PH626-80	-80	5	127.0	5.79	147.0	150	10	450	30	5.70
PH626-96	-96	6	152.0	6.77	172.0	150	10	450	30	7.00
PH626-128	-12	8	203.0	8.94	227.0	150	10	450	30	9.00

Temperature Range : Continuous: -30°C to +70°C
