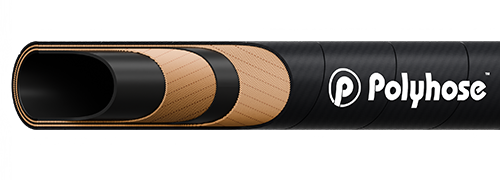

PH639 - BULKMATERIAL DISCHARGE - 20 BAR
Construction
Inner tube
Black colour, Synthetic and natural rubber blend resistant to abrasion
Reinforcement
Plies of synthetic textile cords
Cover
Black colour, Synthetic Rubber resistant to ozone, weather and abrasion
Application
For Discharge of bulk material dry cement, gravel, sand etc., in Construction Industry
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH639-32 | -32 | 2 | 51.0 | 2.64 | 67.0 | 300 | 20 | 870 | 60 | 1.70 |
| PH639-40 | -40 | 2.1/2 | 64.0 | 3.11 | 79.0 | 300 | 20 | 870 | 60 | 2.10 |
| PH639-48 | -48 | 3 | 76.0 | 3.70 | 94.0 | 300 | 20 | 870 | 60 | 2.60 |
| PH639-64 | -64 | 4 | 102.0 | 4.80 | 122.0 | 300 | 20 | 870 | 60 | 4.40 |
| PH639-80 | -80 | 5 | 127.0 | 5.75 | 146.0 | 300 | 20 | 870 | 60 | 5.70 |
| PH639-96 | -96 | 6 | 152.0 | 6.77 | 172.0 | 300 | 20 | 870 | 60 | 7.00 |
| PH639-128 | -128 | 8 | 203.0 | 9.05 | 230.0 | 300 | 20 | 870 | 60 | 9.00 |
Temperature Range : Continuous: -30°C to +70°C
