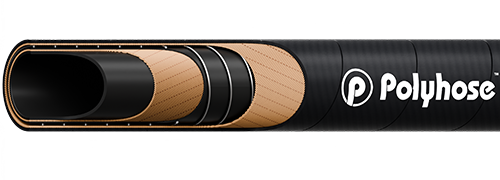

PH647 - SLURRY & MUD WATER SUCTION AND DISCHARGE HOSE
Construction
Inner tube
Black colour, Synthetic and natural rubber blend resistant to abrasion
Reinforcement
Plies of synthetic textile cords with steel helix and two cross anti static copper wires
Cover
Black colour, Synthetic rubber resistant to ozone, weather and abrasion
Application
For suction and discharge of slurry, mud and waste water
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH647-32 | -32 | 2 | 51.0 | 2.64 | 67.0 | 150 | 10 | 450 | 30 | 2.80 |
| PH647-48 | -48 | 3 | 76.0 | 3.66 | 93.0 | 150 | 10 | 450 | 30 | 4.70 |
| PH647-64 | -64 | 4 | 102.0 | 4.80 | 122.0 | 150 | 10 | 450 | 30 | 5.40 |
| PH647-80 | -80 | 5 | 127.0 | 5.79 | 147.0 | 150 | 10 | 450 | 30 | 6.20 |
| PH647-96 | -96 | 6 | 152.0 | 6.85 | 174.0 | 150 | 10 | 450 | 30 | 12.60 |
| PH647-128 | -128 | 8 | 203.0 | 9.33 | 237.0 | 150 | 10 | 450 | 30 | 19.70 |
Temperature Range : Continuous: -30°C to +70°C
