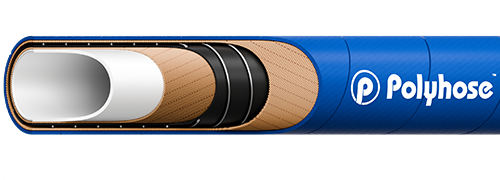

PH648 - UHMWPE SUCTION & DISCHARGE HOSE FOOD
Construction
Inner tube
White colour, Synthetic rubber with transparent UHMPE liner
Reinforcement
Plies of synthetic textile cords with steel helix
Cover
Blue colour EPDM rubber resistant to ozone, weather and abrasion
Application
For conveying food product & potable water
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
V
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | bar | kg/m | ||
| PH648-12 | -12 | 3/4 | 19.0 | 1.22 | 31.0 | 250 | 17 | 750 | 51 | 0.9 | 0.70 |
| PH648-16 | -16 | 1 | 25.0 | 1.46 | 37.0 | 250 | 17 | 750 | 51 | 0.9 | 1.29 |
| PH648-20 | -20 | 1.1/4 | 32.0 | 1.73 | 44.0 | 250 | 17 | 750 | 51 | 0.9 | 1.49 |
| PH648-24 | -24 | 1.1/2 | 38.0 | 1.97 | 50.0 | 250 | 17 | 750 | 51 | 0.9 | 1.90 |
| PH648-32 | -32 | 2 | 51.0 | 2.48 | 63.0 | 250 | 17 | 750 | 51 | 0.9 | 2.50 |
| PH648-40 | -40 | 2.1/2 | 63.0 | 3.07 | 78.0 | 250 | 17 | 750 | 51 | 0.9 | 3.20 |
| PH648-48 | -48 | 3 | 76.0 | 3.62 | 92.0 | 250 | 17 | 750 | 51 | 0.9 | 4.30 |
| PH648-64 | -64 | 4 | 102.0 | 4.65 | 118.0 | 250 | 17 | 750 | 51 | 0.9 | 4.80 |
Temperature Range : Continuous: -30°C to +120°C
