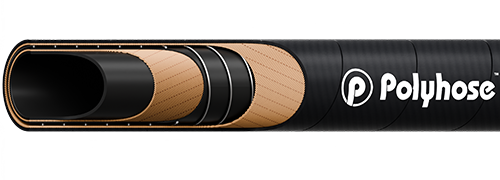

PH661 - MINE BLAST HANDLING HOSE - W.P. 20 BAR
Construction
Inner tube
Black colour, Conductive synthetic rubber abrasion resistance
Reinforcement
Plies of synthetic textile cord with steel helix
Cover
Black colour, Conductive Synthetic rubber resistant to abrasion, Ozone and fire resistance
Application
Mandrel built heavy duty Suction & Discharge hose for handling explosive materials in Mining applications
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
V
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | bar | kg/m | ||
| PH661-32 | -32 | 2 | 51.0 | 2.79 | 71.0 | 300 | 20 | 900 | 60 | 0.9 | 2.50 |
| PH661-40 | -40 | 2.1/2 | 63.0 | 3.27 | 83.0 | 300 | 20 | 900 | 60 | 0.9 | 3.00 |
Temperature Range : Continuous: -30°C to +80°C
