PH663 - AIR & WATER DISCHARGE HOSE FRAS - 20 BAR

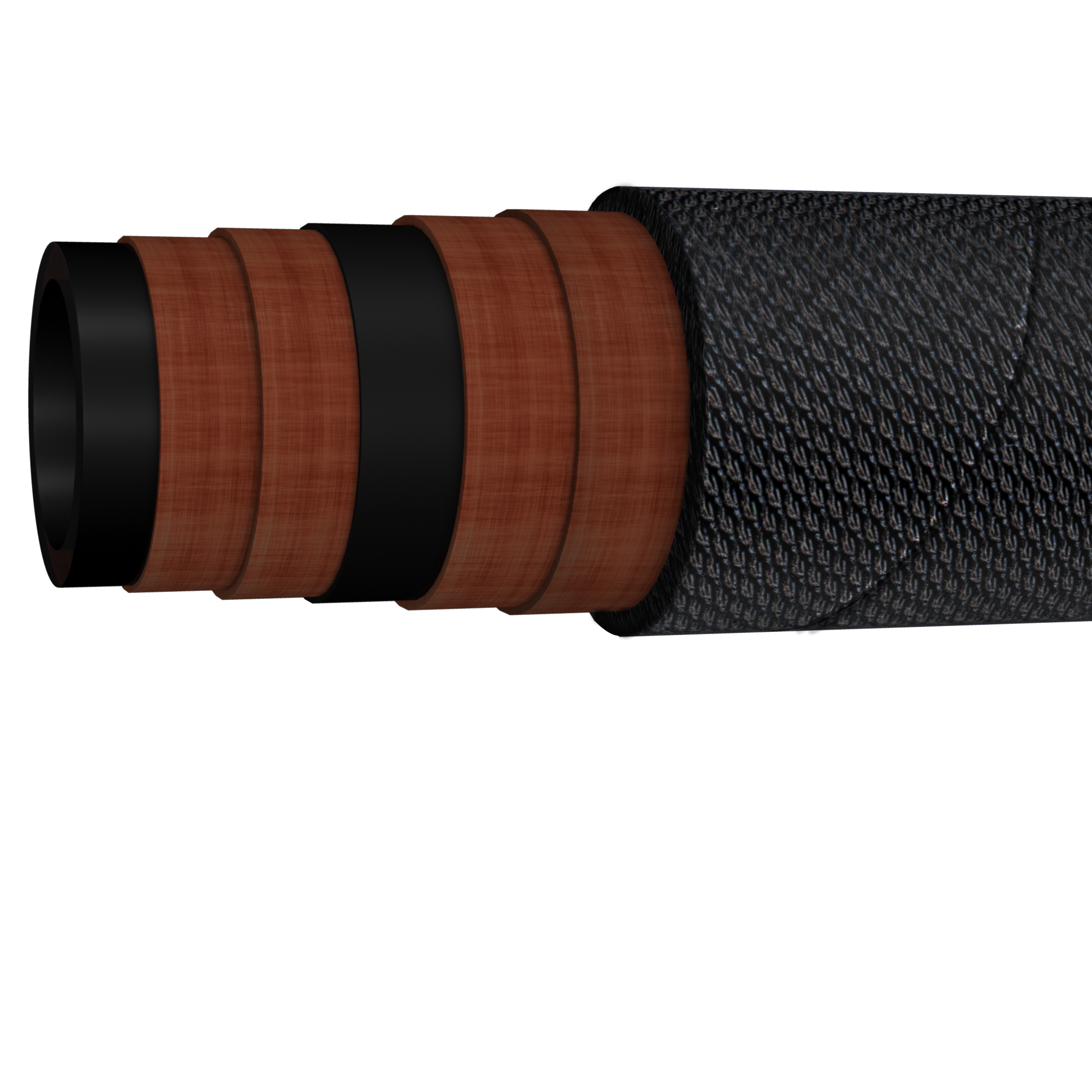

Construction
Inner tube
Black colour, Conductive synthetic rubber resistant to air and water
Reinforcement
Plies of synthetic textile cord
Cover
Black colour, Conductive Synthetic rubber resistant to air and water
Application
Hose designed for Air, water & stone dust delivery in underground mines
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BP
|
W
|
||||
| inch | mm | inch | mm | psi | bar | psi | bar | kg/m | ||
| PH663-16 | -16 | 1 | 25.0 | 1.34 | 34.0 | 300 | 20 | 900 | 60 | 0.53 |
| PH663-20 | -20 | 1.1/4 | 32.0 | 1.65 | 42.0 | 300 | 20 | 900 | 60 | 0.84 |
| PH663-24 | -24 | 1.1/2 | 38.0 | 1.89 | 48.0 | 300 | 20 | 900 | 60 | 0.98 |
| PH663-32 | -32 | 2 | 51.0 | 2.44 | 62.0 | 300 | 20 | 900 | 60 | 1.10 |
| PH663-40 | -40 | 2.1/2 | 63.0 | 2.99 | 76.0 | 300 | 20 | 900 | 60 | 1.50 |
| PH663-48 | -48 | 3 | 76.0 | 3.50 | 89.0 | 300 | 20 | 900 | 60 | 1.72 |
| PH663-56 | -56 | 3.1/2 | 89.0 | 4.06 | 103.0 | 300 | 20 | 900 | 60 | 2.10 |
| PH663-64 | -64 | 4 | 102.0 | 4.57 | 116.0 | 300 | 20 | 900 | 60 | 2.40 |
| PH663-80 | -80 | 5 | 127.0 | 5.59 | 142.0 | 300 | 20 | 900 | 60 | 3.00 |
| PH663-96 | -96 | 6 | 152.0 | 6.57 | 167.0 | 300 | 20 | 900 | 60 | 5.00 |
| PH663-128 | 128 | 8 | 203.0 | 8.62 | 219.0 | 300 | 20 | 900 | 60 | 7.20 |
Temperature Range : Continuous: -20°C to +85°C
