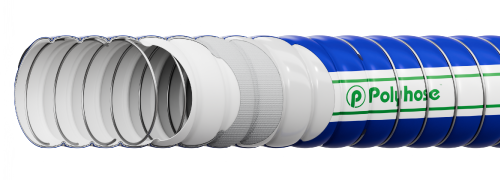

PH810 - POLY - DOCK PG HOSE
Applicable Standard : EN 13765 TYPE 3 : 2010
Construction
Heavy duty PP fabric and films with a double layer of PVC coated fabric cover with inner wire of PP coated Steel and outer wire of galvanised MS
Colour
Blue with white strip
Application
Heavy duty suction and discharge of bulk chemical in road and rail tanker, dockside and ship to shore
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BR/r
|
||||
| inch | mm | inch | mm | psi | bar | inch | mm | ||
| PH810-64 | -64 | 4 | 102.0 | 4.72 | 120.0 | 200 | 14 | 15.75 | 400 |
| PH810-96 | -96 | 6 | 152.0 | 6.89 | 175.0 | 200 | 14 | 22.64 | 575 |
| PH810-128 | -128 | 8 | 203.0 | 9.45 | 240.0 | 200 | 14 | 31.50 | 800 |
| PH810-160 | -160 | 10 | 254.0 | 12.80 | 325.0 | 200 | 14 | 39.37 | 1000 |
Temperature Range : Continuous: -30°C to +80°C
