PH112 - TRACK SAFE - R17

Applicable Standard : SAE J517 - 100R17 / EN 45545-2

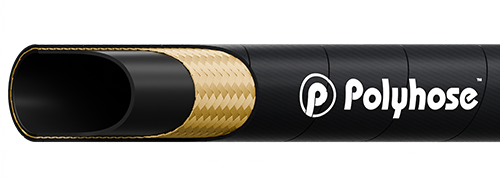

product img

Construction

Inner tube

Synthetic rubber - black resistant to oil and water

Reinforcement

Single or Double steel wire braids

Cover

Synthetic rubber - black resistant to abrasion and weather, oil & ozone.

Application

High performance Constant Pressure Hydraulic Lines 210 bar and requires half bend radius for use with petroleum, synthetic or water based fluids in Hydraulic systems. Hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.

Item
Code		 Dash
Size		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH112-04 -04 06 1/4 6.6 0.50 12.8 3045 210 12180 840 2.0 50 0.218
PH112-05 -05 08 5/16 8.1 0.56 14.3 3045 210 12180 840 2.2 55 0.253
PH112-06 -06 10 3/8 9.7 0.64 16.3 3045 210 12180 840 2.6 65 0.303
PH112-08 -08 12 1/2 12.9 0.80 20.3 3045 210 12180 840 3.5 90 0.446
PH112-10 -10 16 5/8 16.1 0.93 23.5 3045 210 12180 840 3.9 100 0.736
PH112-12 -12 19 3/4 19.2 1.10 28.0 3045 210 12180 840 4.7 120 0.932
PH112-16 -16 25 1 25.7 1.48 37.5 3045 210 12180 840 5.9 150 1.614

imgTemperature Range : Continuous: -40°C to +100°C

Intermittent : +120°C

Impulse Cycles : 200,000 cycles

*Smooth cover available only upto size 1"
