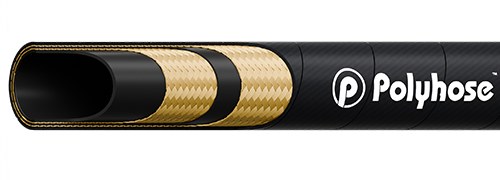

PH125 - JACK HOSE HARD - X MSHA
Construction
Inner tube
Black colour, synthetic rubber resistant to oil & water
Reinforcement
Double wire Braids
Cover
Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber. Available in Wrap and Smooth finish*
Application
Hydraulic jacking system with petroleum and water based fluids. 10,000 PSI Static Pressure Only
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH125-04 | -04 | 06 | 1/4 | 6.4 | 0.52 | 13.2 | 10150 | 700 | 20300 | 1400 | 2.0 | 50 | 0.323 |
| PH125-06 | -06 | 10 | 3/8 | 9.5 | 0.69 | 17.4 | 10150 | 700 | 20300 | 1400 | 2.8 | 70 | 0.472 |
| PH125-08 | -08 | 12 | 1/2 | 13.0 | 0.86 | 21.8 | 10150 | 700 | 20300 | 1400 | 7.1 | 180 | 0.695 |
Temperature Range : Continuous: -40°C to +100°C
*Smooth cover available only upto size 1"
