PH134 - TRACK SAFE - R15

Applicable Standard : SAE J517 -100R15 / ISO 3862 / EN 45545-2

product img

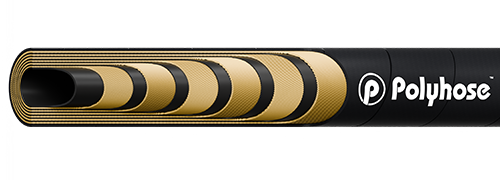

Construction

Inner tube

Synthetic rubber - black resistant to oil and water

Reinforcement

Four high tensile steel wire spiral (DN19-25), Six high tensile steel wire spiral (DN31-51)

Cover

Synthetic rubber - black resistant to abrasion and weather, oil & ozone

Application

High performance 420 bar super high pressure Hydraulic Lines and hydrostatic transmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based fluids in Hydraulic systems. Hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.

Note : 5/8" & 2" Not covered under SAE 100R15
Item
Code		 Dash
Size		 DN
ID
RI OD
OD
OD
WP
BP
BR/r
W
inch mm inch mm inch mm psi bar psi bar inch mm kg/m
PH134-06 -06 10 3/8 9.8 0.69 17.5 0.84 21.4 6000 420 24000 1680 3.50 90 0.822
PH134-08 -08 12 1/2 13.1 0.80 20.4 0.82 24.6 6000 420 24000 1680 4.50 115 0.994
PH134-10 -10 16 5/8 16.2 0.97 24.6 1.06 27.0 6000 420 24000 1680 4.70 120 1.258
PH134-12 -12 19 3/4 19.2 1.14 29.0 1.27 32.2 6090 420 24360 1680 10.43 265 1.814
PH134-16 -16 25 1 25.7 1.40 35.6 1.53 38.9 6090 420 24360 1680 12.99 330 2.277
PH134-20 -20 31 1.1/4 32.2 1.85 47.0 1.96 49.8 6090 420 24360 1680 17.52 445 4.269
PH134-24 -24 38 1.1/2 38.5 2.17 55.1 2.28 58.0 6090 420 24360 1680 20.87 530 5.747
PH134-32 -32 51 2 51.2 2.68 68.0 2.80 71.2 6090 420 24360 1680 23.62 600 8.217

imgTemperature Range : Continuous: -40°C to +121°C

Impulse Cycles : 500,000 cycles
