PH181 - TRACK SAFE - R4

Applicable Standard : SAE J517 - 100R4 / EN 45545-2

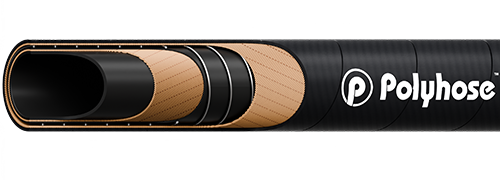

product img

Construction

Inner tube

Synthetic rubber - black resistant to oil

Reinforcement

Plies of synthetic textile cords with steel wire helix and two cross anti static copper wires

Cover

Synthetic rubber - black resistant to abrasion and weather, oil & ozone.

Application

High performance suction return line railway hose meets hazard level HL1 & HL2 of R22 & R23. The specific fire-retardant cover minimizes the release of toxic substances & better visibility in case of fire. This compliance is crucial to enhance passenger safety and prevent the spread of fire within railway vehicles.

Note : 1.3/4"not covered under SAE 100R4
Item
Code		 Dash
Size		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH181-12 -12 19 3/4 19.0 1.18 30.0 365 25 1235 85 2.56 65 0.605
PH181-16 -16 25 1 25.0 1.50 38.0 290 20 1015 70 2.95 75 0.820
PH181-20 -20 31 1.1/4 32.0 1.77 45.0 220 15 870 60 4.13 105 1.100
PH181-24 -24 38 1.1/2 38.0 2.05 52.0 220 15 655 45 4.92 125 1.310
PH181-28 -28 44 1.3/4 45.0 2.20 56.0 145 10 435 30 5.91 150 1.420
PH181-32 -32 51 2 51.0 2.50 63.6 145 10 435 30 5.91 150 1.590
PH181-40 -40 63 2.1/2 64.0 3.00 76.2 75 5 290 20 7.09 180 2.400
PH181-48 -48 76 3 76.0 3.54 90.0 75 5 290 20 9.45 240 2.830
PH181-56 -56 89 3.1/2 89.0 4.05 103.0 75 5 290 20 10.24 260 3.500
PH181-64 -64 100 4 102.0 4.57 116.0 75 5 145 10 11.81 300 4.120

imgTemperature Range : Continuous: -40°C to +100°C

Vacuum : -0.9 bar
