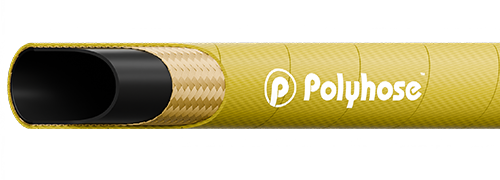

PH202 - MINE SPRAY HOSE MSHA
Construction
Inner tube
Synthetic rubber - black resistant to air and water
Reinforcement
Single steel wire braid
Cover
Synthetic rubber - Yellow resistant to abrasion, weather & ozone.
Application
For general underground water spray service to control dust in mining, construction and quarries.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH 202-08 | -08 | 12 | 1/2 | 13.1 | 0.91 | 23 | 1015 | 70 | 4060 | 280 | 3.5 | 90 | 0.313 |
| PH 202-12 | -12 | 19 | 3/4 | 19.3 | 1.14 | 29 | 1015 | 70 | 4060 | 280 | 4.7 | 120 | 0.54 |
| PH 202-16 | -16 | 25 | 1 | 25.9 | 1.41 | 35.8 | 1015 | 70 | 4060 | 280 | 5.9 | 150 | 0.738 |
| PH 202-20 | -20 | 31 | 1.1/4 | 32.4 | 1.69 | 43 | 1015 | 70 | 4060 | 280 | 8.3 | 210 | 0.957 |
| PH 202-24 | -24 | 38 | 1.1/2 | 38.7 | 1.98 | 50.3 | 1015 | 70 | 4060 | 280 | 9.8 | 250 | 1.195 |
| PH 202-32 | -32 | 51 | 2 | 51.3 | 2.55 | 64.8 | 1015 | 70 | 4060 | 280 | 11.8 | 300 | 1.731 |
Temperature Range : Continuous: -40°C to +100°C
