PH220 - 4SH HARD - X MSHA

Applicable Standard : EN 856 - 4SH / ISO 3862

product img

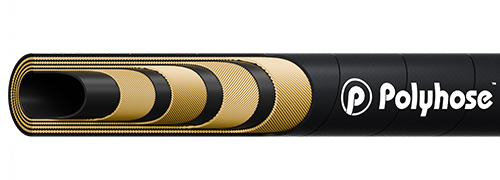

Construction

Inner tube

Black colour, Synthetic rubber resistant to oil and water

Reinforcement

Four high tensile steel wire spirals

Cover

Hard-X Black, Extra abrasion, oil, ozone resistant synthetic rubber.

Application

Extra high pressure Hydraulic Lines 250 to 420 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving & Material handling equipment and machineries/systems

Item
Code		 Dash
Size		 DN
ID
RI OD
OD
OD
WP
BP
BR/r
W
inch mm inch mm inch mm psi bar psi bar inch mm kg/m
PH220-12 -12 19 3/4 19.4 1.12 28.4 1.27 32.2 6090 420 24360 1680 11.02 280 1.605
PH220-16 -16 25 1 25.9 1.40 35.5 1.52 38.7 5510 380 22040 1520 13.39 340 2.277
PH220-20 -20 31 1.1/4 32.5 1.65 41.9 1.79 45.5 5075 350 20300 1400 18.11 460 2.671
PH220-24 -24 38 1.1/2 38.7 1.92 48.8 2.11 53.5 4350 300 17400 1200 22.05 560 3.566
PH220-32 -32 51 2 51.3 2.49 63.2 2.68 68.1 3625 250 14500 1000 27.56 700 5.132

imgTemperature Range : Continuous: -40°C to +100°C

Intermittent : +120°C

Impulse Cycles : 400,000 cycles
