PH231 - MADMAX R1AT/1SN

Applicable Standard : Exceeds SAEJ517-100R1AT/EN853-1SN/ISO 1436

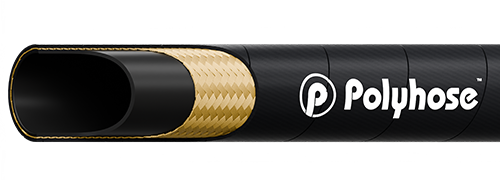

product img

Construction

Inner tube

CPE rubber - black resistant to oil, air and water

Reinforcement

Single steel wire braid

Cover

CPE rubber - black resistant to abrasion, weather, oil & ozone. Also available on blue colour on request

Application

Medium Pressure Hydraulic Lines 10 to 250 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agriculture, Earthmoving & Material handling equipment and machineries/systems

Item
Code		 Dash
Size		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm inch mm psi bar psi bar inch mm kg/m
PH231-04 -04 06 1/4 6.7 0.52 13.1 3265 225 13050 900 3.9 100 0.275
PH231-05 -05 08 5/16 8.2 0.58 14.7 3120 215 12470 860 4.5 115 0.304
PH231-06 -06 10 3/8 9.8 0.67 17.1 2610 180 10440 720 4.9 125 0.402
PH231-08 -08 12 1/2 13.1 0.80 20.2 2320 160 9280 640 7.1 180 0.452
PH231-10 -10 16 5/8 16.2 0.92 23.3 1885 130 7540 520 7.9 200 0.570
PH231-12 -12 19 3/4 19.3 1.07 27.3 1525 105 6090 420 9.4 240 0.717
PH231-16 -16 25 1 25.9 1.39 35.3 1305 90 5150 355 11.8 300 1.070
PH231-20 -20 31 1.1/4 32.4 1.69 43.0 945 65 3700 255 16.5 420 1.450
PH231-24 -24 38 1.1/2 38.7 1.97 50.1 725 50 2900 200 19.7 500 1.750
PH231-32 -32 51 2 51.3 2.50 63.4 580 40 2320 160 24.8 630 2.370

imgTemperature Range : Continuous: -40°C to +150°C

Impulse Cycles : 150000
