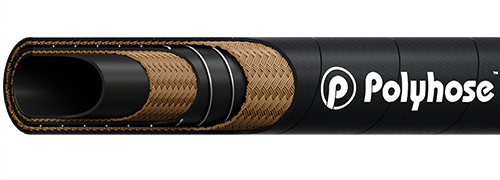

PH401 OIL AND COMPRESSED AIR HOSE
Construction
Inner tube
Black Color, AEM rubber
Reinforcement
Double textile aramid braid with steel wire helix
Cover
Black colour, AEM rubber
Application
Oil coolers,lubricants and oil injected screw compressor applications.
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH401-16 | -16 | 25 | 1 | 25.6 | 1.37 | 35 | 220 | 15 | 1740 | 120 | 6.7 | 170 | 0.563 |
Temperature Range : Continuous: -40°C to +150°C
Intermittent : +175°C
