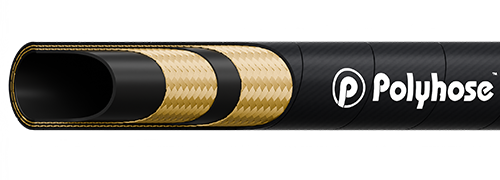

PH466 - 5000 PSI ABRAZON - X MSHA
Applicable Standard : ISO 18752 - AC
Construction
Inner tube
Black colour, synthetic rubber resistant to oil and water
Reinforcement
Double steel wire braids
Cover
Abrazon-X Black, Exceptionally abrasion, oil, ozone resistant synthetic rubber sheathed with layer of UHMW-PE foil.
Application
Constant pressure hydraulic Lines 350 bar for use with petroleum or water based fluids in hydraulic systems. Suitable for Agricultural, Construction & material handling equipments / systems
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH466-04 | -04 | 06 | 1/4 | 6.7 | 0.52 | 13.2 | 5000 | 350 | 20000 | 1400 | 2.0 | 50 | 0.323 |
| PH466-05 | -05 | 08 | 5/16 | 8.2 | 0.59 | 15.0 | 5000 | 350 | 20000 | 1400 | 2.2 | 55 | 0.366 |
| PH466-06 | -06 | 10 | 3/8 | 9.8 | 0.67 | 17.1 | 5000 | 350 | 20000 | 1400 | 2.6 | 65 | 0.466 |
| PH466-08 | -08 | 12 | 1/2 | 13.1 | 0.82 | 20.6 | 5000 | 350 | 20000 | 1400 | 3.5 | 90 | 0.624 |
Temperature Range : -40°C to +100°C
Intermittent : +120°C
