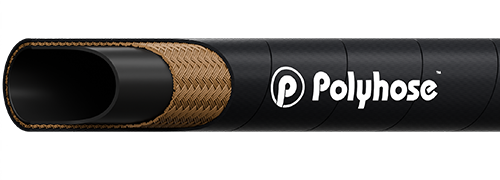

PH575 - LPG HOSE
Applicable Standard : IS 9573 : 2017 Part -1
Construction
Inner tube
Synthetic rubber - black resistant to n-pentane
Reinforcement
Textile reinforcement with electrically bonded wire
Cover
Perforated synthetic rubber - black resistant to abrasion and weather.
Application
Designed for use in motor vehicles with liquified petroleum Gas (LPG) installations, designed for industrial application
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH575-07 | -07 | 11 | 7/16 | 10.75 | 0.69 | 17.70 | 365 | 25 | 1450 | 100 | 4.7 | 120 | 0.310 |
Temperature Range : Continuous: -40°C to +70°C
