PH690 - AVIATION FUEL HOSE

Applicable Standard : EI 1529 Type - C / ISO 1825 Type - C

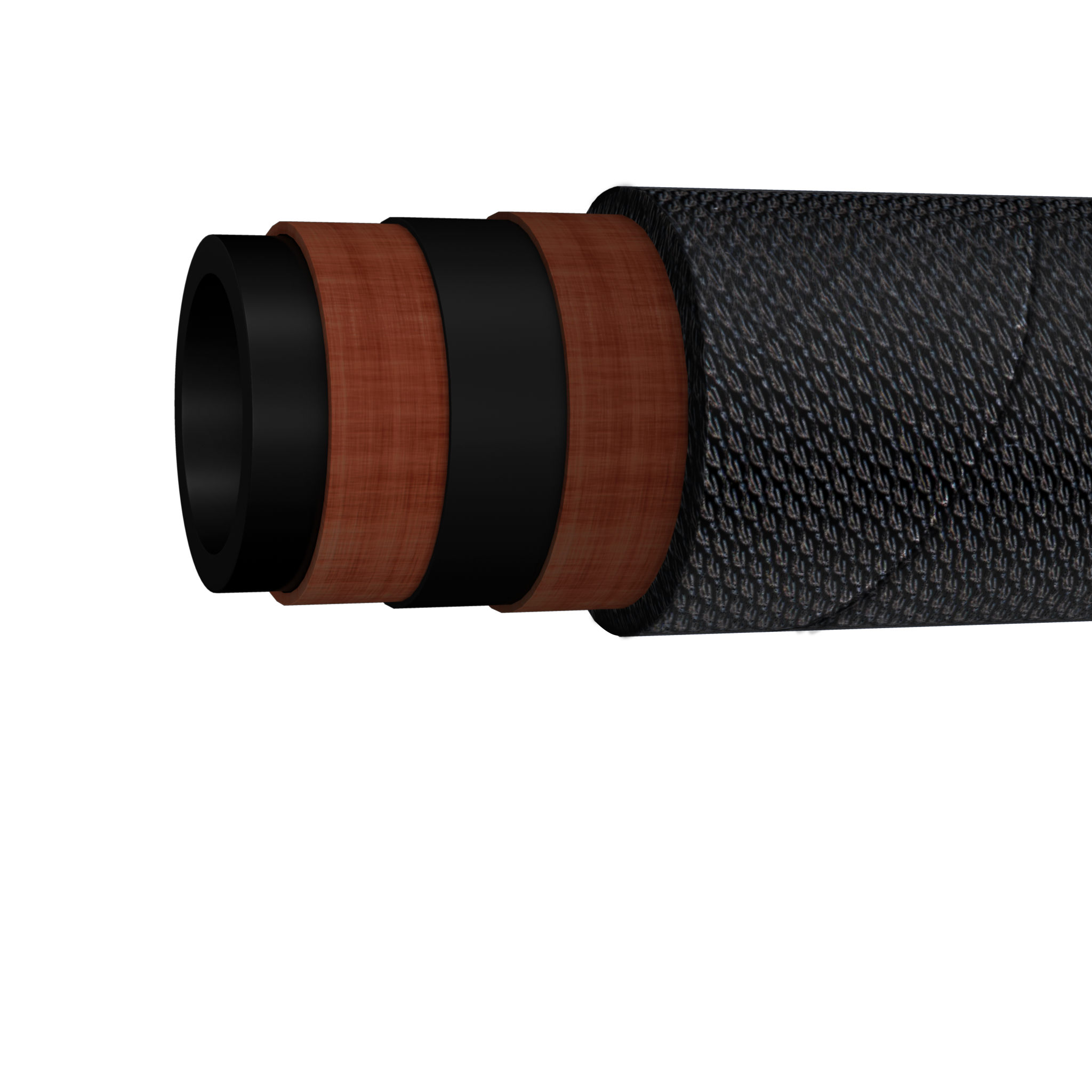

product img

Construction

Inner tube

Black Colour, Synthetic rubber resistant to oil

Reinforcement

Plies of synthetic textile cords

Cover

Black colour, synthetic conductive cover resistant to oil, ozone and abrasion

Application

Aircraft fuelling with jet fuels. Portability, ease of routing and ease of of installation area additional virtues.

Item Code	Dash Size	DN	ID		OD		WP		BP		BR/r		W
Item Code	Dash Size	DN	inch	mm	inch	mm	psi	bar	psi	bar	inch	mm	kg/m
PH690-12	-12	19	3/4	19.0	1.38	35.0	300	20	1200	80	3.5	90	0.800
PH690-16	-16	25	1	25.4	1.63	41.5	300	20	1200	80	4.5	115	1.000
PH690-20	-20	32	1.1/4	32.0	1.89	48.0	300	20	1200	80	5.5	140	1.300
PH690-24	-24	38	1.1/2	38.0	2.19	55.5	300	20	1200	80	7.1	180	1.830
PH690-32	-32	50	2	51.0	2.66	67.5	300	20	1200	80	8.5	215	2.580
PH690-40	-40	63	2.1/2	63.0	3.23	82.0	300	20	1200	80	9.1	230	3.100

Temperature Range : Continuous: -30°C to +65°C
