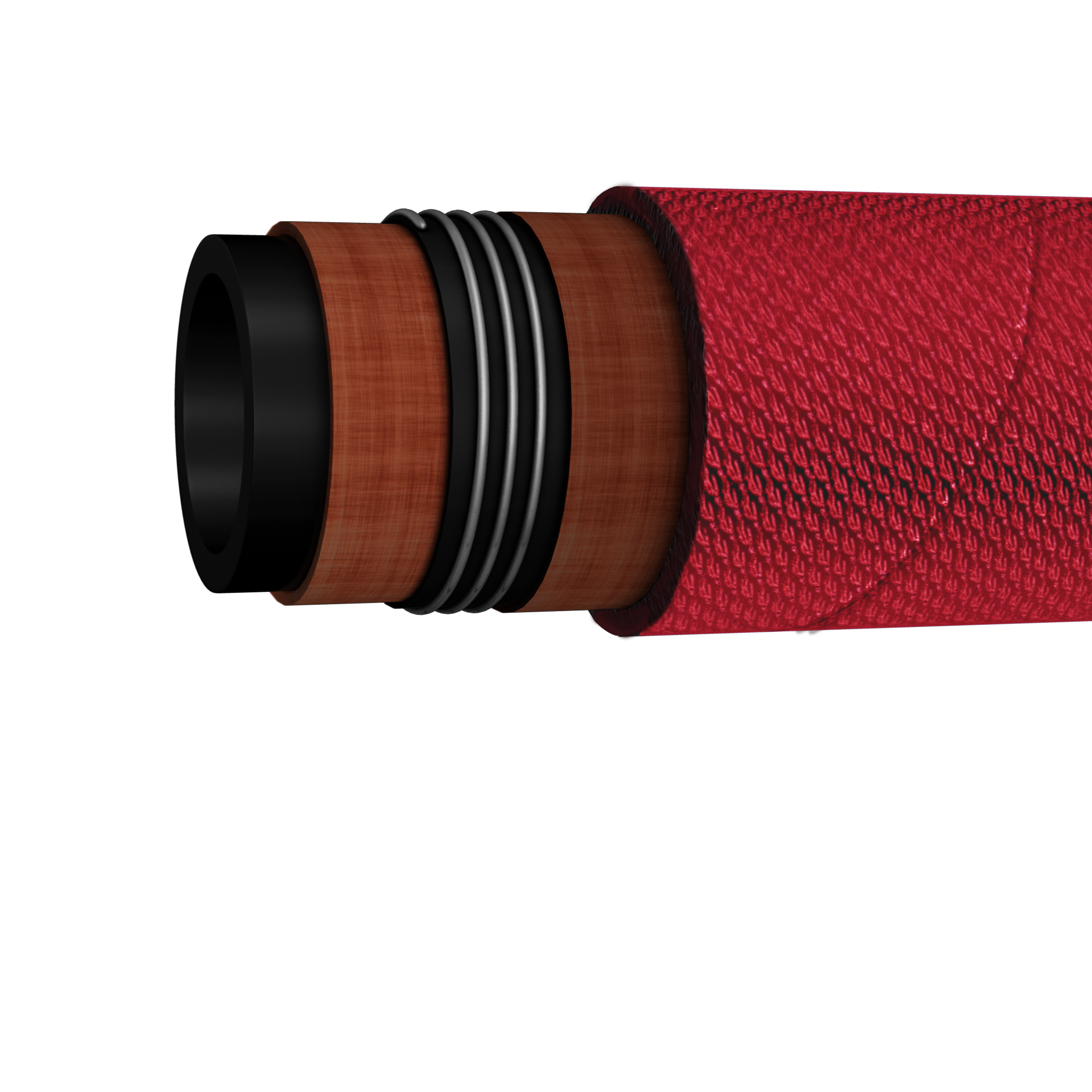

PH695 - STEAM HOSE
Construction
Inner tube
Black colour, EPDM rubber resistant to high temperature stream
Reinforcement
High tensile synthetic textile cords with steel wire helix
Cover
Red colour, EPDM rubber resistance to heat and weather
Application
Hardwell hose for conveying steam at maximum working pressure of 18 bar, used in chemical industries and industrial application in genral, where tighter bending radius is necessary
| Item Code |
Dash Size |
DN |
ID
|
OD
|
WP
|
BP
|
V
|
BR/r
|
W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | bar | inch | mm | kg/m | |||
| PH695-32 | -32 | 51 | 2 | 50.8 | 2.76 | 70.0 | 260 | 18 | 2610 | 180 | 14.2 | 0.9 | 360 | 2.750 |
| PH695-40 | -40 | 63 | 2.1/2 | 63.0 | 3.39 | 86.0 | 260 | 18 | 2610 | 180 | 17.5 | 0.9 | 445 | 3.750 |
| PH695-48 | -48 | 76 | 3 | 76.0 | 3.86 | 98.0 | 260 | 18 | 2610 | 180 | 21.1 | 0.9 | 535 | 4.480 |
| PH695-64 | -64 | 102 | 4 | 102.0 | 4.88 | 124.0 | 260 | 18 | 2610 | 180 | 28.1 | 0.9 | 715 | 6.122 |
Temperature Range : Continuous: -40°C to +210°C
