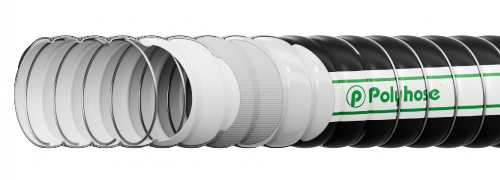

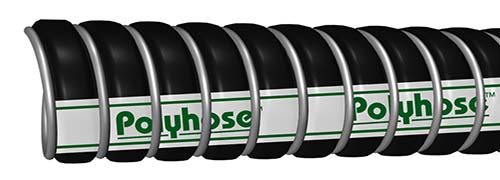

PH801 - POLY - TANKER HOSE
Applicable Standard : EN 13765 TYPE 1 : 2010
Construction
Hose made from Polypropylene fabric and films with PVC coated fabric cover, inner and outer wires are galvanised MS
Colour
Black with white strip
Application
Suction and discharge hose specially designed for transfer of petroleum product by Road Tankers, Rail Tankers and Loading Gantries
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BR/r
|
||||
| inch | mm | inch | mm | psi | bar | inch | mm | ||
| PH801-32 | -32 | 2 | 51.0 | 2.40 | 61.0 | 100 | 7 | 7.87 | 200 |
| PH801-40 | -40 | 2-1/2 | 63.0 | 2.99 | 76.0 | 100 | 7 | 7.87 | 200 |
| PH801-48 | -48 | 3 | 76.0 | 3.46 | 88.0 | 100 | 7 | 11.02 | 280 |
| PH801-64 | -64 | 4 | 102.0 | 4.41 | 112.0 | 100 | 7 | 15.75 | 400 |
Temperature Range : Continuous: -30°C to +80°C
