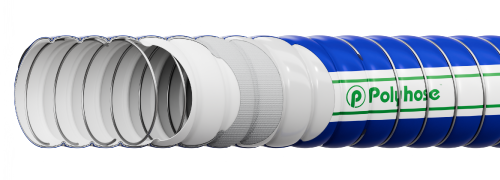

PH808 - POLY - CHEMICAL DOCK HOSE
Applicable Standard : EN 13765 TYPE 3 : 2010
Construction
Hose made from heavy duty Polypropylene fabric and films with a double layer of PVC coated fabric cover, inner and outer wire of SS 316
Colour
Royal Blue with white strip
Application
Heavy duty suction and discharge of bulk chemical in road and rail tanker, dockside and ship to shore
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BR/r
|
||||
| inch | mm | inch | mm | psi | bar | inch | mm | ||
| PH808-64 | -64 | 4 | 102.0 | 4.72 | 120.0 | 200 | 14 | 15.75 | 400 |
| PH808-96 | -96 | 6 | 152.0 | 6.89 | 175.0 | 200 | 14 | 22.64 | 575 |
| PH808-128 | -128 | 8 | 203.0 | 9.45 | 240.0 | 200 | 14 | 31.50 | 800 |
| PH808-160 | -160 | 10 | 254.0 | 12.80 | 325.0 | 200 | 14 | 39.37 | 1000 |
Temperature Range : Continuous: -30°C to +80°C
