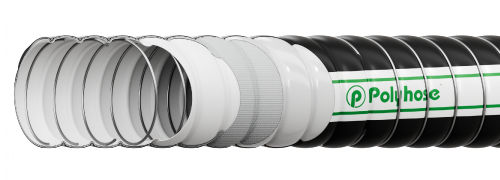

PH811 - POLY - OIL DOCK HOSE
Applicable Standard : EN 13765 TYPE 3 : 2010
Construction
Heavy duty PP fabric and films with a double layer of PVC coated fabric cover with inner and outer wires are galvanised MS
Colour
Black with white strip
Application
Heavy duty suction and discharge of petroleum products in road and rail tanker, dockside and ship
| Item Code |
Dash Size |
ID
|
OD
|
WP
|
BR/r
|
||||
| inch | mm | inch | mm | psi | bar | inch | mm | ||
| PH811-64 | -64 | 4 | 102.0 | 4.72 | 120.0 | 200 | 14 | 15.75 | 400 |
| PH811-96 | -96 | 6 | 152.0 | 6.89 | 175.0 | 200 | 14 | 22.64 | 575 |
| PH811-128 | -128 | 8 | 203.0 | 9.45 | 240.0 | 200 | 14 | 31.50 | 800 |
| PH811-160 | -160 | 10 | 254.0 | 11.42 | 290.0 | 200 | 14 | 39.37 | 1000 |
Temperature Range : Continuous: -30°C to +80°C
