PH817 - POLY - BITUMEN TRANSFER HOSE

Applicable Standard : EN 13765 Type 2

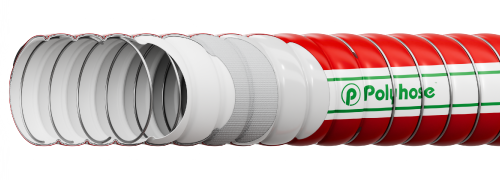

product img

Construction

Hose made from polypropylene fabric and films with PVC coated fabric cover, inner & outer galvanised wire and lined with layer of PTFE film

Application

Transferring high temperature viscous fluids(Bitumen and Tar)

Item
Code
ID
OD
OD
WP
BR/r
W
inch mm inch mm psi bar inch mm kg/m
PH817-16 1 25 1.26 32 150 10 4.92 125 1.3
PH817-20 1.1/4 32 1.65 42 150 10 5.91 150 1.5
PH817-24 1.1/2 38 2.01 51 150 10 5.91 150 1.7
PH817-32 2 50 2.52 64 150 10 7.87 200 2.2
PH817-40 2.1/2 65 2.99 76 150 10 7.87 200 2.9
PH817-48 3 75 3.62 92 150 10 11 280 3.5
PH817-64 4 100 4.72 120 150 10 15.7 400 5.5
PH817-96 6 150 6.89 175 150 10 22.6 575 12.9
PH817-128 8 200 9.45 240 150 10 31.5 800 17
PH817-160 10 250 12.8 325 150 10 47.2 1200 19.3

imgTemperature Range : Continuous: -30°C to +150°C

Intermittent : +180°C
