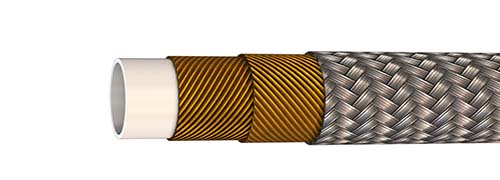

PH903 - 2 SPIRALS OF HIGH TENSILE STEEL WIRE, 1 BRAID OF G.I STEEL WIRE

product img

Construction

Inner tube

Polytetrafluoroethylene (PTFE)

Reinforcement

2 Spirals of high-tensile steel wire, 1 braid of G.I steel wire

Safety Factor

up to 50 °C - 1,0 / up to 100°C - 0,95 / up to 150°C - 0,9 / up to 200°C - 0,83 for higher temperatures

Application

Automotive: Hot Melt Adhesives / Hot Glue Dispensing, Injection Molding, Chemical Transfer / Paint Transfer, Robotic Systems, Compressed Gas

Note : Production related variations of Burst Pressure of upto 10% possible. Indicated working pressure refers to hose only. Depending on the end connectors used, the permited working pressure of hose assembly may be less
Item
Code		 DN
ID
OD
OD
WP
BP
BR/r
W
inch mm mm psi bar psi bar mm g/m
PH903-04 6 1/4 6.2 11.2 7250 500 29000 2000 60 270
PH903-05 8 5/16 8.0 13.4 6880 475 27500 1900 85 345
PH903-06 10 3/8 10.0 15.7 6525 450 26100 1800 110 500
PH903-08 12 1/2 12.2 18.8 6520 450 26100 1800 150 600
PH903-10 16 5/8 15.1 21.6 5800 400 23200 1600 175 700
PH903-12 20 3/4 20.2 27.5 4350 300 17400 1200 200 1055
PH903-16 25 1 24.2 31.4 3980 275 15950 1100 240 1205
PH903-20 32 1 1/4 32.0 39.0 3620 250 14500 1,000 280 1600

imgTemperature Range : Continuous: -70°C to +200°C

Important Information !

PH903 series hoses are intended for being used as basic hoses for heating hose systems. They do not have an outer cover and the wires are not protected against corrosion. It is not allowed to use these hoses in a “normal” hose assembly without taking the right steps to prevent the corrosion of the wires because there exists the risk of injury as well as the possibility of the failure of the hose assembly. PH903 series hoses are available as a special execution with a plastic outer cover. For further information, Please contact manufacturer
