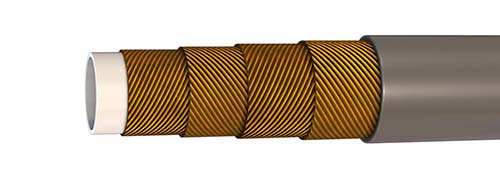

PH904 - 4 SPIRALS OF HIGH TENSILE STEEL WIRE
Construction
Inner tube
I.D 3mm - 10mm Polyoxymethylene (POM) , I.D 13mm - 25mm Polyamide (PA)
Reinforcement
4 Spirals of high tensile steel wire
Cover
Polyamide (PA)
Application
Water Blast: Heat exchanger tube cleaning Hydraulics: Bolt tensioning, Pressure test equipment (valves, tooling and control panels), hydraulic tools (instrumentation packages for gauges, control of service equipment, hydraulic jacks, hydraulic tools) Oil and Gas: Grease injection, chemical injection, control of subsea hydraulic components, nitrogen service, gaseous media handling.
| Note : Production related variations of Burst Pressure of upto 10% possible. Indicated working pressure refers to hose only. Depending on the end connectors used, the permited working pressure of hose assembly may be less |
| Item Code |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||
| inch | mm | mm | psi | bar | psi | bar | mm | g/m | ||
| PH904-02 | 3 | 1/8 | 3.4 | 8.0 | 29000 | 2000 | 72500 | 5000 | 110 | 135 |
| PH904-025 | 4 | 5/32 | 4.0 | 10.3 | 31900 | 2200 | 79750 | 5500 | 130 | 234 |
| PH904-03 | 5 | 3/16 | 5.0 | 11.2 | 26100 | 1800 | 65250 | 4500 | 150 | 260 |
| PH904-04 | 6 | 1/4 | 6.3 | 12.6 | 21750 | 1500 | 54370 | 3750 | 180 | 295 |
| PH904-05 | 8 | 5/16 | 8.0 | 14.6 | 21750 | 1500 | 54370 | 3750 | 200 | 390 |
| PH904-06 | 10 | 3/8 | 9.9 | 18.4 | 21750 | 1500 | 54370 | 3750 | 200 | 690 |
| PH904-08 | 12 | 1/2 | 12.8 | 21.4 | 18850 | 1300 | 47125 | 3250 | 200 | 800 |
| PH904-10 | 16 | 5/8 | 16.0 | 25.5 | 15080 | 1040 | 37700 | 2600 | 250 | 1002 |
| PH904-12 | 20 | 3/4 | 18.8 | 28.8 | 15080 | 1040 | 37700 | 2600 | 250 | 1350 |
| PH904-16 | 25 | 1 | 24.8 | 36.3 | 13050 | 900 | 32625 | 2250 | 300 | 1715 |
WJTA-IMCA Color Coding Scheme for Pressure Hoses - Maximum Working Pressure Applicable
Temperature Range : Continuous: -30°C to +60°C
