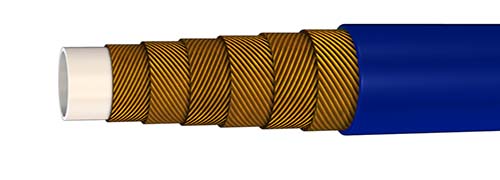

PH906 - 6 SPIRALS OF HIGH TENSILE STEEL WIRE
Construction
Inner tube
I.D 3mm to 10mm Polyoxymethylene (POM), I.D 13mm to 25mm Polyamide (PA)
Reinforcement
6 Spirals of high tensile steel wire
Cover
Polyamide (PA)
Application
Water Blast: surface preparation(Concrete removal, surface cleaning of buildings, paint removal),tank and vessal cleaning, ultra high pressure waterjet cutting and hydro demolition(cutting and demolition of armoured concrete, pipelines, paper or steel) Hydraulics: hydraulic tools (instrumentation packages for gauges, control of service equipment, hydraulic jacks, hydraulic tools)
| Note : Production related variations of Burst Pressure of upto 10% possible. Indicated working pressure refers to hose only. Depending on the end connectors used, the permited working pressure of hose assembly may be less |
| Item Code |
DN |
ID
|
OD
|
WP
|
BP
|
BR/r
|
W
|
|||
| inch | mm | mm | psi | bar | psi | bar | mm | g/m | ||
| PH906-02 | 3 | 1/8 | 3.0 | 9.1 | 40600 | 2800 | 101500 | 7000 | 150 | 222 |
| PH906-025 | 4 | 5/32 | 4.0 | 11.5 | 40600 | 2800 | 101500 | 7000 | 175 | 365 |
| PH906-03 | 5 | 3/16 | 4.8 | 13.2 | 36250 | 2500 | 90625 | 6250 | 200 | 450 |
| PH906-05 | 8 | 5/16 | 8.0 | 16.4 | 30450 | 2100 | 76125 | 5250 | 250 | 640 |
| PH906-06 | 10 | 3/8 | 9.8 | 20.4 | 27840 | 1920 | 69600 | 4800 | 250 | 1000 |
| PH906-08 | 12 | 1/2 | 12.8 | 23.4 | 26100 | 1800 | 65250 | 4500 | 300 | 1160 |
| PH906-10 | 16 | 5/8 | 15.9 | 27.7 | 22040 | 1520 | 55100 | 3800 | 320 | 1480 |
| PH906-12 | 20 | 3/4 | 18.8 | 32.8 | 20300 | 1400 | 50750 | 3500 | 350 | 2170 |
| PH906-16 | 25 | 1 | 24.8 | 39.8 | 20300 | 1400 | 43500 | 3000 | 600 | 2800 |
WJTA-IMCA Color Coding Scheme for Pressure Hoses - Maximum Working Pressure Applicable
Temperature Range : Continuous: -30°C to +60°C
