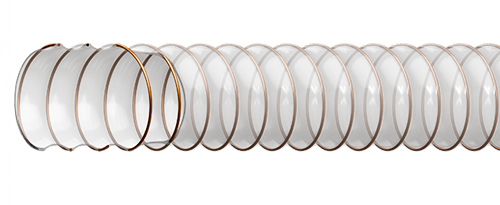

POLYURETHANE DUCTING - MEDIUM
Construction
Wall
Polyester Polyurethane
Spiral
Spring Steel Wire
Properties
Extremely flexible, Light in Weight, High abrasion resistant, Microbe - resistance, Good chemical resistance, Good UV and ozone resistance, Oil / petroleum proof, Increased vacuum and pressure resistance, Anti static if connected with helical wire
Application
Suction & transport of abrasive solids, liquids, fine grained particles, such as dust and powder. Used in extraction of oil mist, paper & textile fibers
| Item Code |
ID
|
WT
|
VP
|
BR/r
|
W
|
|
| inch | mm | mm | bar | mm | kg/m | |
| PH032050AANT | 1.1/4 | 32 | 0.50 | 0.25 | 32 | 0.204 |
| PH038050AANT | 1.1/2 | 38 | 0.50 | 0.25 | 38 | 0.240 |
| PH040050AANT | 40 | 0.50 | 0.20 | 40 | 0.252 | |
| PH045050AANT | 45 | 0.50 | 0.16 | 45 | 0.282 | |
| PH051050AANT | 2 | 51 | 0.50 | 0.16 | 51 | 0.318 |
| PH060050AANT | 60 | 0.50 | 0.16 | 60 | 0.372 | |
| PH063050AANT | 2.1/2 | 63 | 0.50 | 0.16 | 63 | 0.448 |
| PH065050AANT | 65 | 0.50 | 0.16 | 65 | 0.462 | |
| PH070050AANT | 70 | 0.50 | 0.14 | 70 | 0.496 | |
| PH076050AANT | 3 | 76 | 0.50 | 0.10 | 76 | 0.515 |
| PH080050AANT | 80 | 0.50 | 0.10 | 80 | 0.537 | |
| PH090050AANT | 3.1/2 | 90 | 0.50 | 0.10 | 90 | 0.545 |
| PH102060AANT | 4 | 102 | 0.60 | 0.09 | 102 | 0.780 |
| PH110060AANT | 110 | 0.60 | 0.08 | 110 | 0.840 | |
| PH120060AANT | 120 | 0.60 | 0.08 | 120 | 0.914 | |
| PH127060AANT | 5 | 127 | 0.60 | 0.08 | 127 | 0.966 |
| PH130060AANT | 130 | 0.60 | 0.08 | 130 | 0.981 | |
| PH140060AANT | 5.1/2 | 140 | 0.60 | 0.08 | 140 | 0.989 |
| PH150060AANT | 150 | 0.60 | 0.06 | 150 | 1.096 | |
| PH152060AANT | 6 | 152 | 0.60 | 0.06 | 152 | 1.116 |
| PH160060AANT | 160 | 0.60 | 0.06 | 160 | 1.463 | |
| PH180085AANT | 7 | 180 | 0.85 | 0.05 | 180 | 1.995 |
| PH200085AANT | 7.7/8 | 200 | 0.85 | 0.05 | 200 | 2.188 |
| PH220085AANT | 220 | 0.85 | 0.05 | 220 | 2.213 | |
| PH250085AANT | 10 | 250 | 0.85 | 0.05 | 250 | 2.482 |
| PH279085AANT | 11 | 279 | 0.85 | 0.05 | 279 | 2.767 |
| PH300085AANT | 12 | 300 | 0.85 | 0.04 | 300 | 2.973 |
| PH350085AANT | 14 | 350 | 0.85 | 0.04 | 350 | 3.029 |
| PH400085AANT | 16 | 400 | 0.85 | 0.03 | 400 | 3.458 |
| PH450085AANT | 18 | 450 | 0.85 | 0.03 | 450 | 3.784 |
| PH500085AANT | 20 | 500 | 0.85 | 0.02 | 500 | 4.201 |
| PH600085AANT | 24 | 600 | 0.85 | 0.01 | 600 | 5.037 |
Temperature Range : Continuous: -40°C to +90°C
